Nema Vs Ip Rating Chart / NEMA Ratings Chart & IP Equivalent Conversion Chart | APG : Before we move on to the conversion chart, let's quickly review from our previous two posts the differences between the nema enclosure types and the ip ratings.. Used to rate ip boxes and nema boxes. 1 = protected against solid foreign objects of 50mm in diameter and greater. While nema and ip ratings are not identical, they are very similar and can often be used interchangeably for the purpose of rating enclosures for industrial environments. Ip vs nema chart nema enclosure types. To download the ip ratings and nema ratings charts, fill out the form on the right side of this page.

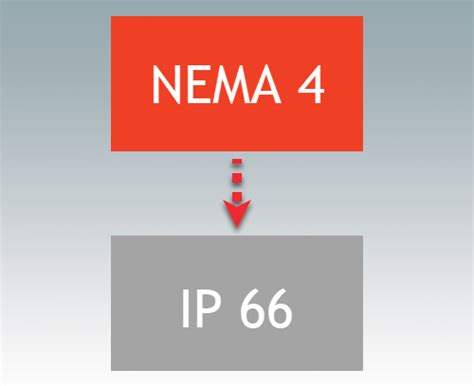

Nema ratings and ip ratings both define degrees of protection against substances such as water and dust, but use different test methods and parameters to define their enclosure types (nema 250 and iec standard 60529). The national electrical manufacturers association (nema) in the united states also publishes protection ratings for enclosures similar to the ip rating system published by the international electrotechnical commission (iec). Both ip and nema enclosure types provide protection for electrical components. Nema ratings exceed ip ratings and therefore, this chart can only be used to convert nema to ip, but not ip to nema. Nema type vs ip code rating how are they diffe equivalency chart premise led manufacturer in canada the usa.
Weatherproof Enclosure Ratings: Speaking the Secret ... from blog.dwyer-inst.com However, no official conversion chart exists. Nema and ip rating chipkin automation systems. In the united states, the national electrical manufacturers association developed the nema rating for classifying an enclosure's level of protection from those. Enclosures constructed for indoor use to provide a degree of protection to personnel against incidental contact with the enclosed equipment and to provide a degree of protection against falling dirt. This is because the ratings pertain to electric motors, enclosures, and motor controllers. Nema ratings and ip equivalents. Used to rate ip boxes and nema boxes. Here are some nema ratings with their closest.
Before we move on to the conversion chart, let's quickly review from our previous two posts the differences between the nema enclosure types and the ip ratings.
Enclosures constructed for indoor use to provide a degree of protection to personnel against incidental contact with the enclosed equipment and to provide a degree of protection against falling dirt. Nema type vs ip code rating how are they different. There is no 'exact' match between nema and ip ratings, but these pairings are the closest associations between the two standards. Nema vs ip chart bedowntowndaytona com, nema ratings buying guide for type 1 3r 4 4x 12, nema and ip classifications equivalency a chart to guide, motor nameplate letter code designations, convert nema to ip convert nema to ip iec rating. Ip ratings chart and some content courtesy of blue sea systems. Ip rating and nema protection explained. Nema ratings exceed ip ratings and therefore, this chart can only be used to convert nema to ip, but not ip to nema. The acronym nema refers to the national electrical manufacturers association. In the united states, the national electrical manufacturers association developed the nema rating for classifying an enclosure's level of protection from those. This is typically expressed as ip followed by two digits. Convert nema to ip iec rating. Here's a quick introduction to. The united states national electrical manufacturers association (nema) also publishes protection ratings for enclosures similar to the ip rating system published by the international electrotechnical commission (iec).
Nema and ip rating chipkin automation systems. 910 east orangefair lane anaheim, ca 92801 usa. Here's a quick introduction to. Ip65 enclosure ratings, what are the major differences to know? Enclosures constructed for indoor use to provide a degree of protection to personnel against incidental contact with the enclosed equipment and to provide a degree of protection against falling dirt.
IP Enclosure Ratings & Standards | Acrodyne from www.acrodyne.com.au Ingress protection ratings ip codes and standards. Nema ratings and ip equivalents. Siemon corporate social and environmental responsibility policy. Ip ratings are used to quantify the amount of protection the enclosure offers. Polycase has a quick rundown of the facts you need. Enclosures are used to prevent damage or harm to things like equipment or electronics, and also to reduce the the ip rating system is established by iec standard 60529. Ip ratings specify standards primarily for protection against ingress of solid foreign objects or liquids, while nema. A higher number means greater protection against solids.
Nema type vs ip code rating how are they diffe equivalency chart premise led manufacturer in canada the usa.
Instead of saying water resistant, the ip code can tell us exactly hence an ip rating of ip67 means that the enclosure is dust proof and water resistant up to 1 meter of liquid submersion. 1 = protected against solid foreign objects of 50mm in diameter and greater. Both ip and nema enclosure types provide protection for electrical components. This can be a helpful resource when deciphering the ip or nema rating of an. Ip, nema and ul rating codes the international protection rating, sometimes referred to as an ingress protection rating, is a set of codes used to define. Explanation of ip ratings & nema ratings using our ingress protection chart. This is because the ratings pertain to electric motors, enclosures, and motor controllers. Nema type vs ip code rating how are they diffe equivalency chart premise led manufacturer in canada the usa. While nema enclosure type and ip ratings define ingress protection, they do not use exactly the same tests so it is not possible to directly convert between the two ratings. Nema ratings and ip ratings both define degrees of protection against substances such as water and dust, but use different test methods and parameters to define their enclosure types (nema 250 and iec standard 60529). Nema ratings exceed ip ratings and therefore, this chart can only be used to convert nema to ip, but not ip to nema. Ip chart should be used as a guide rather than a rule. The chart below will cover both ratings and how they differ.
In the united states, the national electrical manufacturers association developed the nema rating for classifying an enclosure's level of protection from those. Nema and ip rating chipkin automation systems. Nema ratings buying guide for type 1 3r 4 4x 12. Used to rate ip boxes and nema boxes. The acronym nema refers to the national electrical manufacturers association.

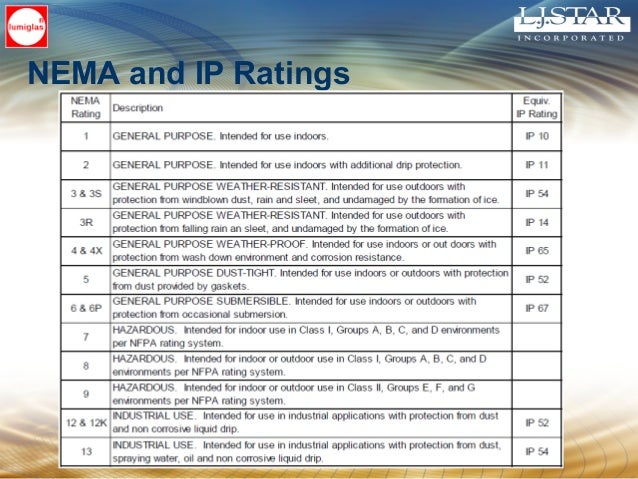

NEMA and IP Rating Chart from img.yumpu.com The leftmost digit indicates the level. The background of nema vs iec. Nema and ip rating chipkin automation systems. Nema ratings buying guide for type 1 3r 4 4x 12. Nema type vs ip code rating how are they different. Ip ratings specify standards primarily for protection against ingress of solid foreign objects or liquids, while nema. There is no 'exact' match between nema and ip ratings, but these pairings are the closest associations between the two standards. What ingress protection rating systems mean plus the nearest nema nema (national electrical manufacturers association) ratings can be approximately compared to those of the ip ratings system as shown.
910 east orangefair lane anaheim, ca 92801 usa.
The united states national electrical manufacturers association (nema) also publishes protection ratings for enclosures similar to the ip rating system published by the international electrotechnical commission (iec). Electrical control enclosures nema minneapolis mn rapid. Ingress protection ratings ip codes and standards. Enclosures are used to prevent damage or harm to things like equipment or electronics, and also to reduce the the ip rating system is established by iec standard 60529. Nema and ip ratings are two different systems for rating and categorizing the performance of electrical enclosures. The acronym nema refers to the national electrical manufacturers association. Nema ratings and ip equivalents. Used to rate ip boxes and nema boxes. Learn the difference between nema vs ip ratings for electronics enclosures. Nema type vs ip code rating how are they different. Both ip and nema ratings define the level of protection equipment has against external contaminants, like dust and water. There is no 'exact' match between nema and ip ratings, but these pairings are the closest associations between the two standards. Nema sets the standards for electrical products sold in the united states.
